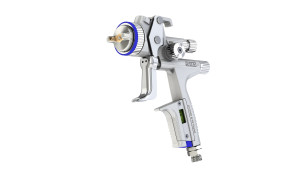

The new SATAjet 5000 B has been created in co-operation with the Porsche design studio. But it's not all about good looks, the development process focused on creating a spray gun with outstanding versatility in terms of inlet pressure and application distance, as well as adaptability to the specific requirements of different paint systems.
As a result, SATA has launched this spraygun with the catchphrase, ‘As versatile as you’. The aim is to highlight the fact that, while all painters are different, this gun has the extraordinary flexibility to suit everyone.
Whether you choose the HVLP or RP version, the inlet pressure can be set in a range between 0.5 bar and 2.4 bar. In addition, the application distance can be varied between 10cm and 21cm, depending on the material being sprayed, the ambient conditions and personal preference of the painter. It’s about allowing the gun to be adapted to the specific requirements of each painter to make their job as easy as possible while helping them achieve an optimum finish.
Dubbed the ‘Super Saver’, the HVLP version achieves high material transfer rates due to its low pressure technology. The RP version is dubbed ‘Super Speed’ and uses precise high pressure technology to maximise application speed and minimise overspray. Whichever version you choose, you will benefit from transfer efficiency rates far exceeding 65 per cent say SATA.
The air micrometre used to adjust the inlet pressure is now considerably larger making it much easier to regulate. Switching from round to flat only takes a half turn on the spray fan control which allows even better adjustment than before.
SATAjet 5000 B features:
-
QCC – Quick Cup Connection at only a ¼ turn
-
Self adjusting packings
-
Softer trigger pull
-
Optional inbuilt digital gauge reads to two decimal places
-
CCC- Colour coded clips to quickly identify different guns (e.g. different painters, water or solvent)
-
Optional RPS mixing cups
-
Quick Change - cleaning and maintenance-friendly larger thread at the air nozzle, allows for faster removal and reduces the cross threading risk which can shorten gun life
-
SATA 3-year warranty
A comprehensive range of SATA spray equipment, including is available from your PPG Plus distributor and Protec Select distributor.
