The PNP 90 XT² is a pneumatic, hydraulic universal stamping and riveting tool specifically designed for all common riveting operations on sandwich panels, thin sheet and high-strength sheet.
The equipment’s universal technology enables adaptation of various attachments for different applications. The hydraulic pump is a pneumatically-driven pressure intensifier with a ratio of 1:100.
This means that a hydraulic secondary pressure of 600 bar is generated by a primary air pressure of 6 bar.
When the equipment’s preset final pressure is reached, the pump stops automatically and keeps this pressure constant. The hydraulic pump has a pneumatically controlled pressure relief valve.

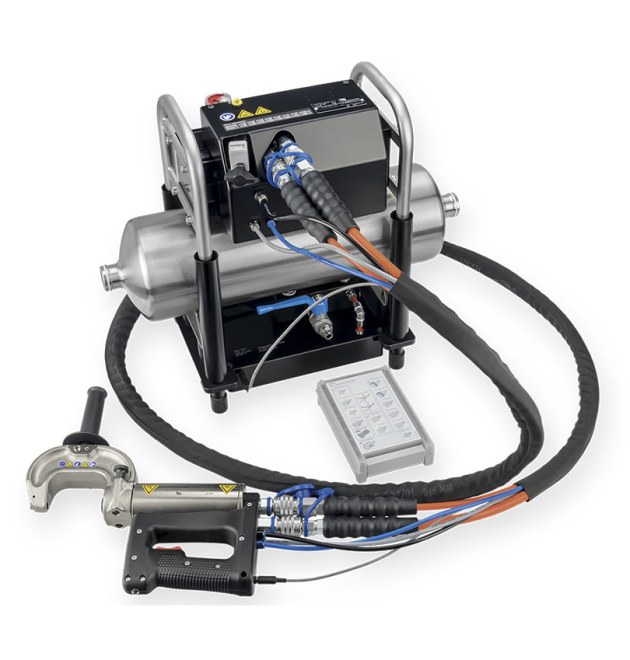

The Docking Station DS XT2 supplementary unit is an addition to the PNP 90 XT² stamping and riveting tool. It ensures consistent quality for the riveting process.
If the operating pressure drops below 6 bar (minimum operating pressure), the operator will be informed via optical indicator (red LED) and the pressure accumulator will take over the pressure supply.
Benefits:
- 2-Circuit-Hydraulic (Push & Pull)
- An existing PNP 90 XT2 is upgradable by using the Docking Station DC XT2
- Easy handling by external pump-system
- Combination with existing riveting tools possible
- Infinite adjustment of the working pressure
- Processing high-strength materials
- Clear order through colour coding and labelling of the rivet inserts
